PTR8-07-30WT
PTR8-07-30WT
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

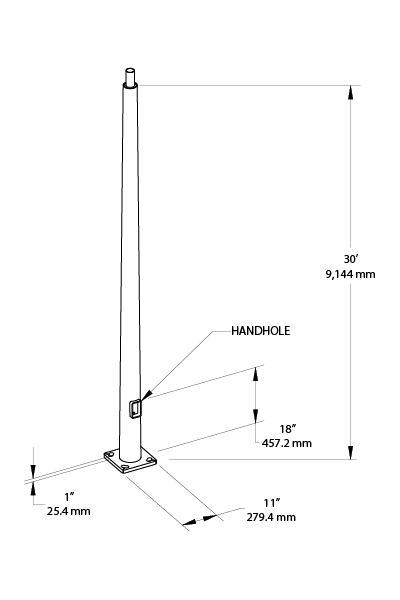

Dimensions
Weight: 389.1 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Performance
Description
Steel pole 8" taper 7 gauge 30 foot welded tenon square base
Construction
Base Shaft Diameter
8"
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Color
Bronze powder coating
Height
30 ft
Gauge
7
Wall Thickness
3/16"
Anchor Bolt Templates
WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 23.1 ft/640 lb.
80MPH 15.4 ft/630 lb.
90MPH 10.1 ft/620 lb.
100MPH 9.7 ft/680 lb.
110MPH 6.8 ft/680 lb.
120MPH 4.6 ft/670lb.
130MPH 2.9 ft/660 lb.
140MPH 1.5 ft/650 lb.
150MPH 0.4 ft/630 lb
80MPH 15.4 ft/630 lb.
90MPH 10.1 ft/620 lb.
100MPH 9.7 ft/680 lb.
110MPH 6.8 ft/680 lb.
120MPH 4.6 ft/670lb.
130MPH 2.9 ft/660 lb.
140MPH 1.5 ft/650 lb.
150MPH 0.4 ft/630 lb
Other
Terms of Sale
Pole Terms of Sale is available online.
