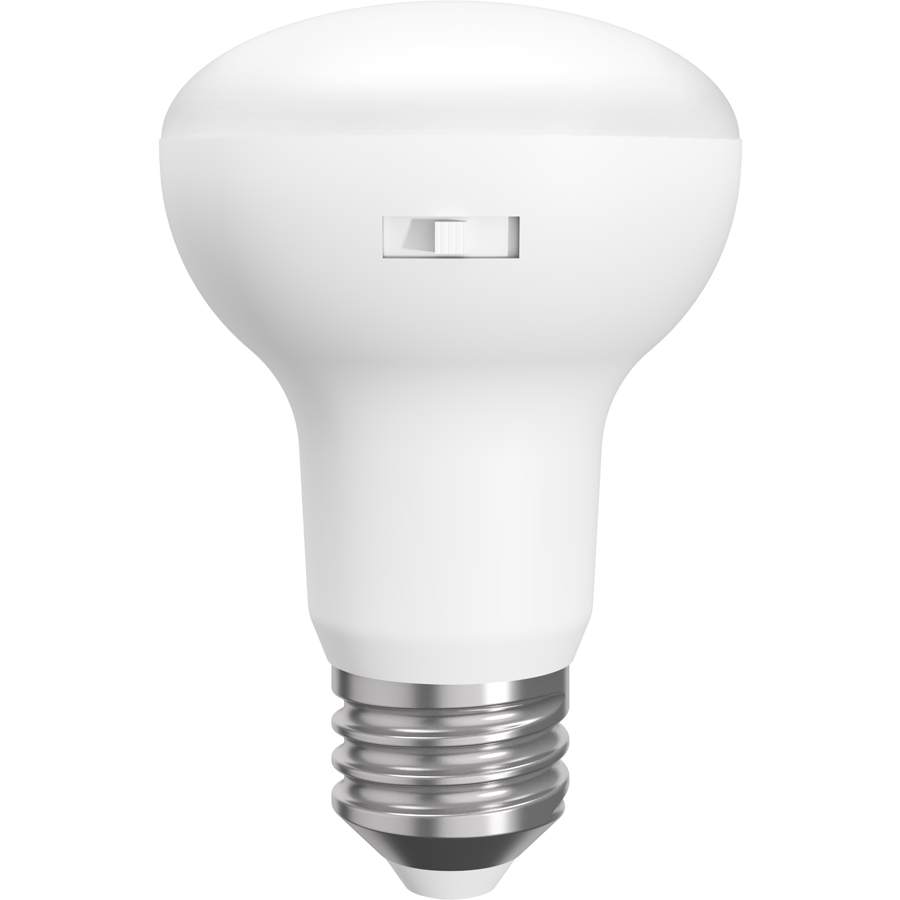

R20-6-9CCT-DIM
R20-6-9CCT-DIM
- CCT- adjustable color temperature 2700/3000/3500/4000/5000K
- Energy efficient replacement for incandescent and halogen lamps
- Produces rich and vibrant colors >90CRI
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- Dimmable, see Dimmer Compatibility List
Performance
| Watts | 6W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 525 lm |
| Efficacy | 88 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 15,000 Hours |
| Input Voltage | 120V |
| Power Factor | 0.9 |
| Flicker | <30% |
| THDi | N/A |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
Reflector, CCT-Adjustable
Description
CCT-selectable lamps replace up to 150W conventional incandescent.
Wattage Equivalency
50W Halogen
Input Wattage
6W
Lumens
525lm
Efficacy
88lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 50/60 Hz; 120V: 63mA
THD
<75%
Power Factor
0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Temperature
-4°F to 113°F(-20 to 45°C)
Flicker
<30%
LED Characteristics
Beam Angle
120°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Default: 3000K
Default: 3000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K/5000K); <7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
E26 Edison
Construction
Shape
R20
Finish
White
Endcap Material
Nickel-plated aluminum
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Lens Finish
Frosted
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
P30011(R20-6-9CCT-DIM)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
