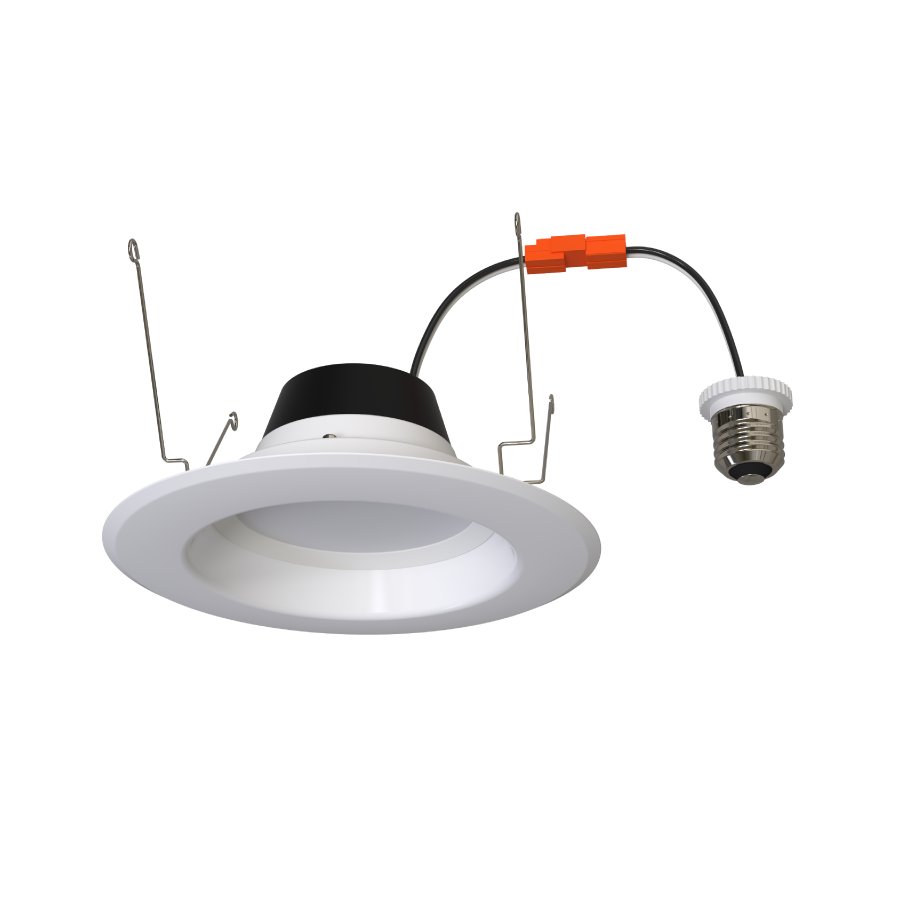

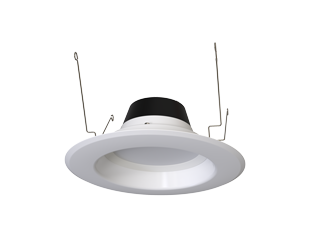

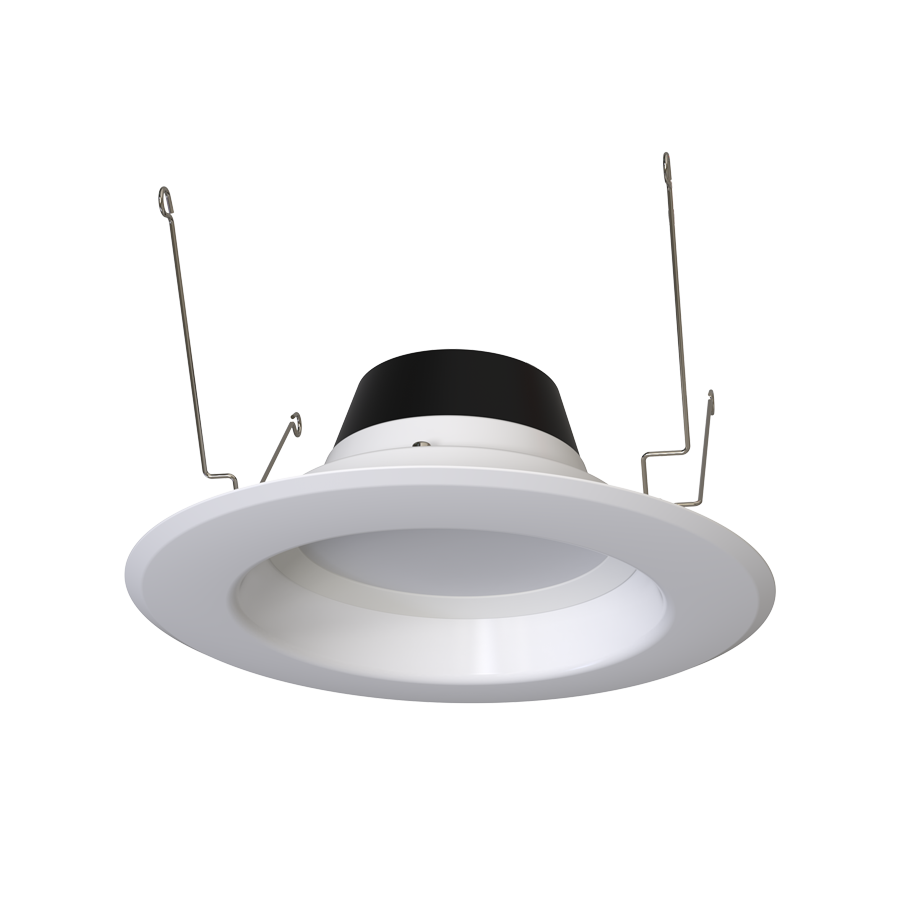

R34X-6
- 4" & 5/6" Recessed LED trims are compatible with most recessed housings
- 3 Selectable lumen outputs: 4" - 500/600/700 lumens, 6" - 750/1,050/1,300 lumens
- 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
- Constructed from die-cast aluminum available in a smooth splay reflector or baffled trim with a smooth flat frosted polycarbonate lens
- Available in Painted White or Black finish. Optional color trim overlays sold separately.
- Dimmable down to 10% with compatible TRIAC/ELV dimmers, see dimmer compatibility list
- 5-year warranty, 50,000 hours lifespan, Title 24 JA8 and Title 20 compliant, wet location rated, Air Tight
Performance
| Watts | 14/11/7.5W |
| Color Temp | |
| Lumens | 1300/1050/750 lm |
| Efficacy | 100 |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.13A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 14/11/7.5W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
LED Trim - Metal
Description
Available in 4" and 6" models with 3 power settings and 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.
Wattage Equivalency
60W/75W/100W Incandescent
Input Wattage
14/11/7.5W
Lumens
1,300/1,050/750lm
Lumens (Measured)
5W
2700K: 750lm
3000K: 770lm
3500K: 800lm
4000K: 810lm
5000K: 780lm
6W
2700K: 616lm
3000K: 626lm
3500K: 636lm
4000K: 636lm
5000K: 619lm
7W
2700K: 717lm
3000K: 728lm
3500K: 741lm
4000K: 741lm
5000K: 712lm
2700K: 750lm
3000K: 770lm
3500K: 800lm
4000K: 810lm
5000K: 780lm
6W
2700K: 616lm
3000K: 626lm
3500K: 636lm
4000K: 636lm
5000K: 619lm
7W
2700K: 717lm
3000K: 728lm
3500K: 741lm
4000K: 741lm
5000K: 712lm
Efficacy
100lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
130mA
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
85°±10°
Color Temperature

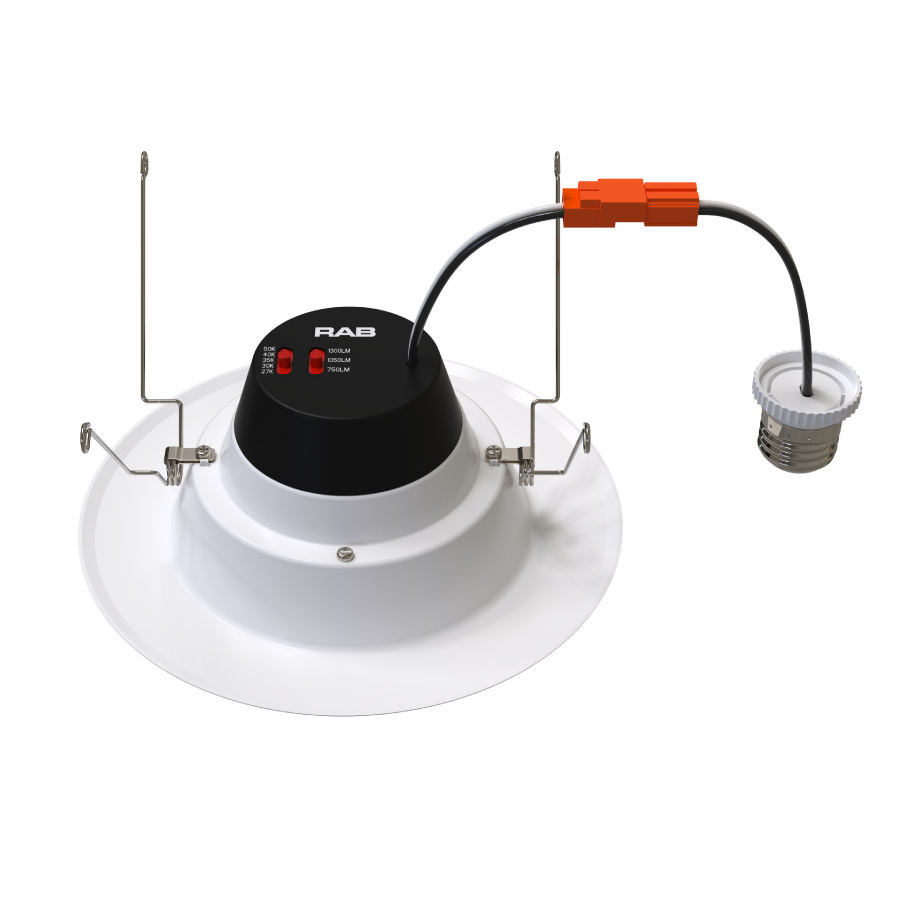

Field-adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color (2700K/5000K)
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed with housing
Construction
Size
6"
Shape
Round
Finish
White
Material
Constructed from spun aluminum
Trim Style
Smooth Splay
Lens Finish
Frosted
Lens
Single optic and full-face lens for precise beam angle control
Compliance
Listings
UL Classified, UL Recognized
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Certified.
Certification Model Number
DLR0163(R34X-6)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
RFLED-GOOF-6R-8R-W
6"-8" Goof ring round white
DLTRIM/R6RS-BN
6" Color trim round smooth brushed nickel
DLTRIM/R6RS-BRZ
6" Color trim round smooth bronze
DLTRIM/R6RS-B
6" Color trim round smooth black
DLTRIM/R6RB-BN
6" Color trim round baffle brushed nickel
DLTRIM/R6RB-BRZ
6" Color trim round baffle bronze
DLTRIM/R6RB-B
6" Color trim round baffle black
RFLED-RETROBAND
6" Retrofit band
6"-8" Goof ring round white
DLTRIM/R6RS-BN
6" Color trim round smooth brushed nickel
DLTRIM/R6RS-BRZ
6" Color trim round smooth bronze
DLTRIM/R6RS-B
6" Color trim round smooth black
DLTRIM/R6RB-BN
6" Color trim round baffle brushed nickel
DLTRIM/R6RB-BRZ
6" Color trim round baffle bronze
DLTRIM/R6RB-B
6" Color trim round baffle black
RFLED-RETROBAND
6" Retrofit band
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
