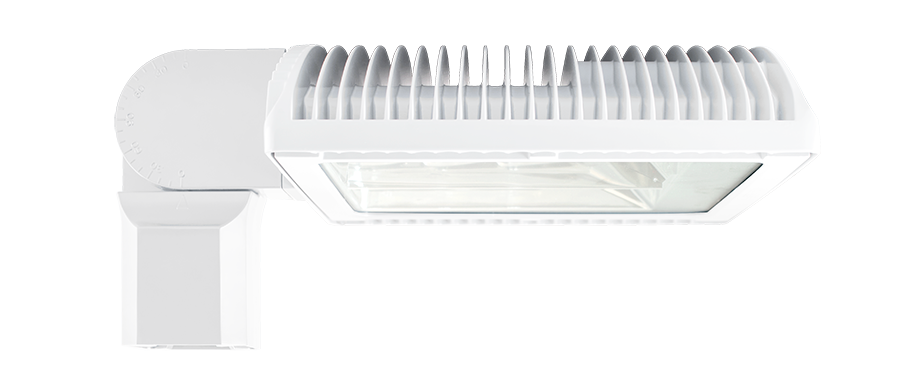

RWLED2T78NW/480

Ideal for entrance roadways, collector roads, and single-sided roads

78W High-Performance LED

Replaces 250W metal halide roadway fixtures

27 year lifespan dramatically reduces maintenance and re-lamping costs

Precision optics deliver maximum downward street side lumens with uniformity and minimal glare

Compatible with standard roadway arms

Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included

Industry-leading 5G vibration rating per ANSI C136.31

Easy-access electrical compartment makes wiring fast and secure

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	78W
Color Temp	4000K (Neutral)
Lumens	9,523 lm
Efficacy	119.8 lm/W
Color Accuracy	72 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	79.5W

EZ-Layout

Create Custom Lighting Layout

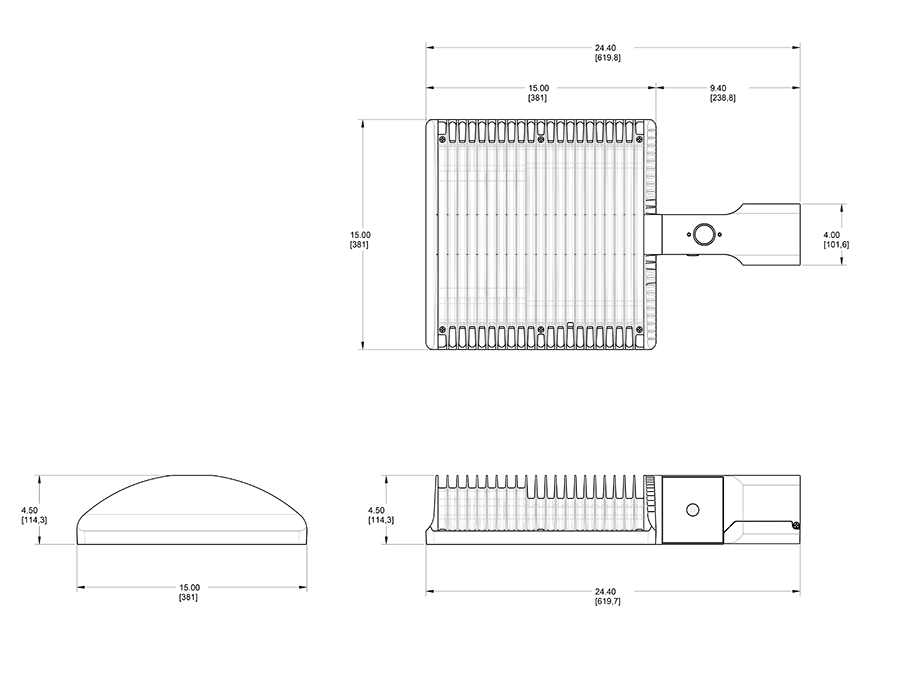

Dimensions

Weight: 33.5 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations as a downlight

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: PUHBN64A

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Optical

IES Classification

The Type II distribution is ideal for entrance roadways, collector roads and other long, single-sided and narrow lighting applications. This type of lighting is commonly found on smaller local streets.

Construction

Effective Projected Area

EPA = 0.75

Electrical

Driver

Constant Current, Class 2, 2000mA, 347-480V =0.17A, 50-60Hz, Power Factor 96.6%

THD

11.5% at 480V

Power Factor

95.1% at 480V
