SM-9R-W/EMBB

Spec Sheet Instructions Sell Sheet Family Spec Sheet Spec Sheet

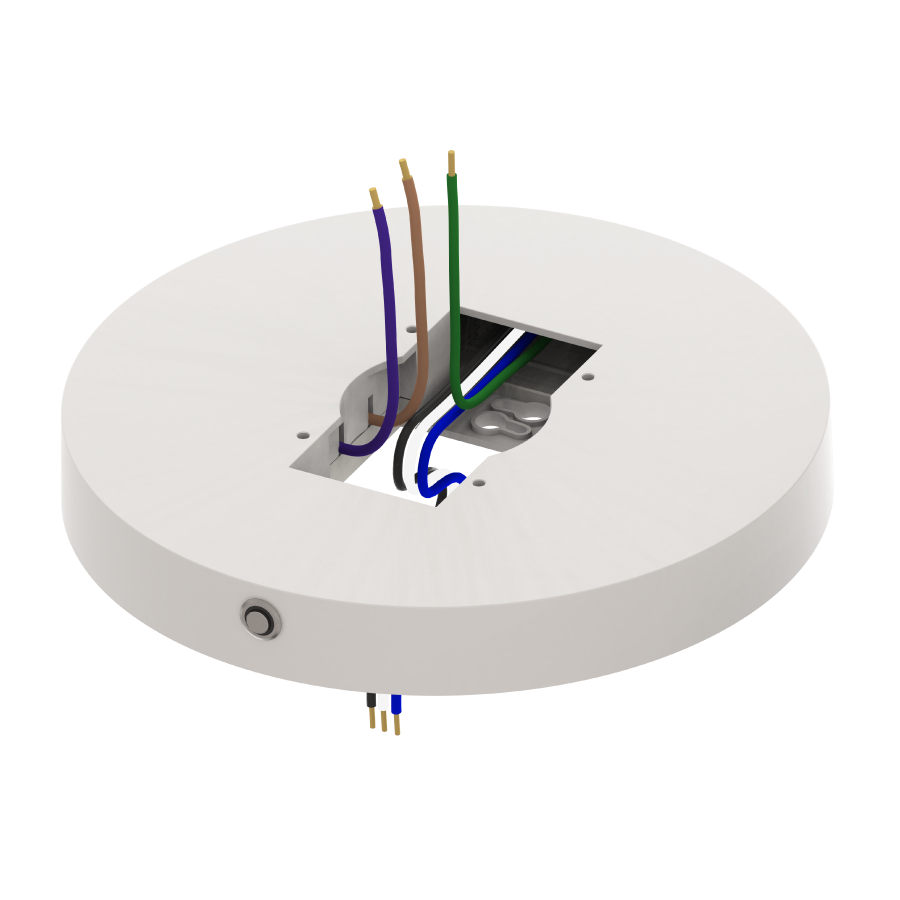

SM-9R-W/EMBB

View Technical Specs

View Price & Availability

Dimensions

Weight: 1.4 lbs

Technical Specifications

Performance

Product Type

Surface Mount Battery Backup

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

<20%

Power Factor

0.9

Input Voltage

100-277V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

60mA

Input Current @ 208V (mA)

100mA

Emergency Operation

90 minutes

Battery Type

Lithium Ion

Discharge Temperature

32°F to 122°F (0°C to 50°C)

Storage Temperature

-4°F to 77°F (-20°C to 25°C)

Storage Shelf Life

1-year

Lightcloud

Operating Temperature

41°F to 104°F (5°C to 40°C)

Installation

Mounting

Surface Mount

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

UV Protection

Compliance

Listings

UL Recognized

Environment

Suitable for use indoors in dry and damp environments.

IC Rated

Certification Model Number

SM-9R-W/EMBB

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

Other

Compatible Products

Compatible with select Surface Mount Downlights, see complete Downlight Accessory Compatibility Guide.

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
