TOSYY
TOSYY
- Flexible, wet location LED tape provides energy-efficient lighting for both indoor and outdoor applications.
- Field-cuttable every 1.97" for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)
- Easy installation to most surfaces by using pre-attached 3M® double-sided tape
- Available in Static White 2700K, 3000K, 4000K
- 60W & 96W indoor or outdoor rated drivers available (sold separately)
- 60W & 96W indoor or outdoor rated drivers available (sold separately)
Performance
| Watts | 2.5 W/FTW |
| Color Temp | |
| Lumens | 250lm/ft lm |
| Efficacy | 100 |
| Color Accuracy | 2700K CRI |
| L70 Lifespan |
| Type | Constant Voltage |
| 120V | 19 mA/LED |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 2.5 W/ftW |

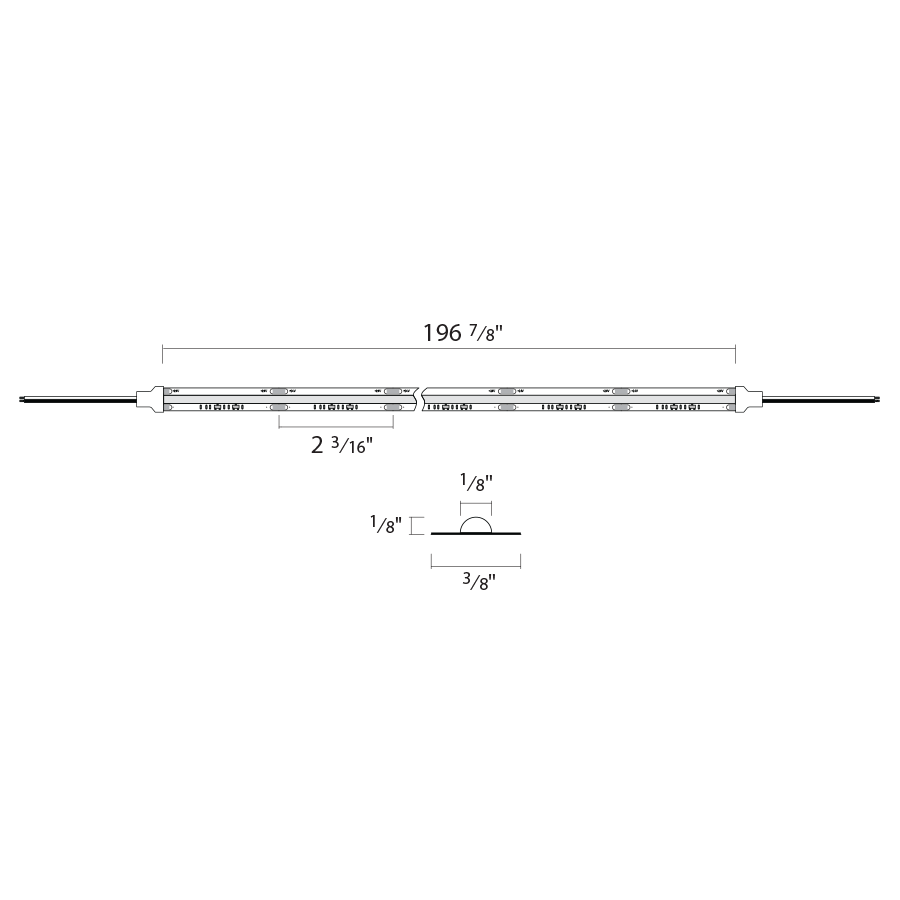

Dimensions
Weight: 0.9 lbs
Technical Specifications
Performance
Product Type
Wet Location SMD Tape Static White
Description
FLEXTAPE is a bendable, outdoor LED tape that provides energy-efficient lighting for both indoor and outdoor applicatio
Input Wattage
2.5 W/ft
Lumens
225lm/ft±10%
Efficacy
100lm/W±10%
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
PWM Dimming Signal, dimmable down to .1% with LED Driver (sold separately)
Input Voltage
DC24V
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
120°
Color Temperature
2700K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Certification Model Number
<5-step (2700K & 5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Field Cuttable Increment
Cuttable every 2.19"
Mounting
Easy installation to most surfaces by using pre-attached 3M® double-sided tape
Construction
Length
32.8 ft
Light Source
SMD LED White
Material Construction
Weather-reisistant, high-grade silicone cover with super-flexible bending .
Light Effect
Soft linear lighting performance
Compliance
Listings
UL2108
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Field Wiring Accessories
TOJ2
2-Pin outdoor connector kit
TPF2
2-Pin power feed kit
2-Pin outdoor connector kit
TPF2
2-Pin power feed kit
Mounting Accessories
TAP12
12mm wide aluminum channel kits
TSC2
Silicone mounting clips
12mm wide aluminum channel kits
TSC2
Silicone mounting clips
Compatible Drivers
TID-60
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
HALV10L940-LH-W/LC/E2
Architectural 169 Lumens Halv Forward Light 14W 90Cri 4000K Linen Harbor Lens White Finish Lightcloud Controller Battery Backup

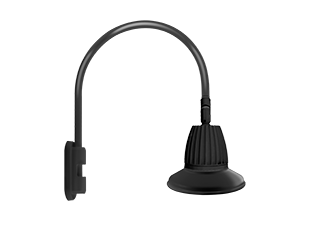

GN5LED26NRST11B
