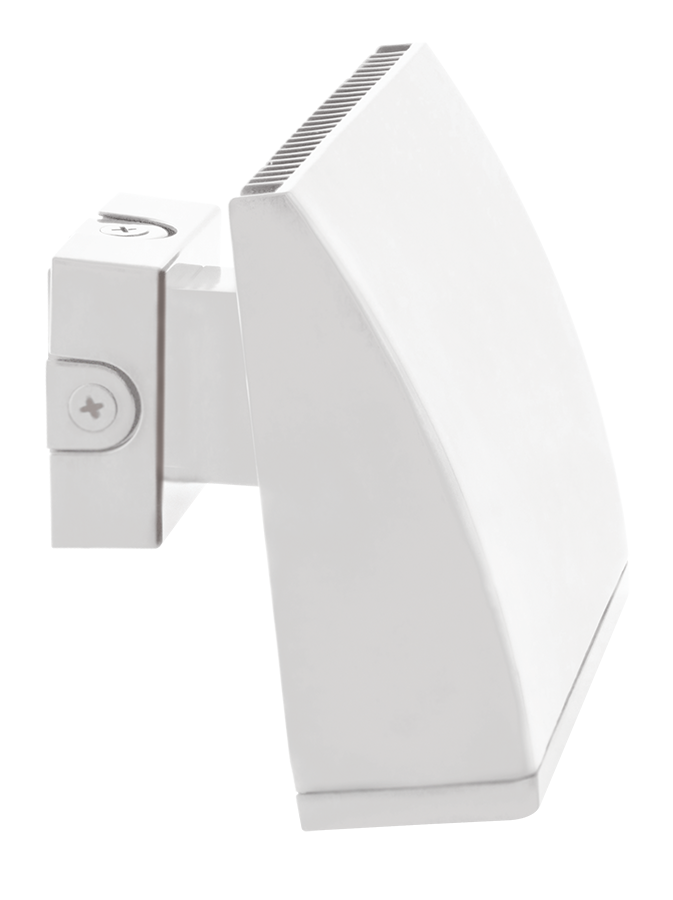

WPLEDC52W/480
WPLEDC52W/480
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 250W MH
- Traditional wall pack look from the front
- 3 cutoff options
- 5-Year, No-Compromise Warranty
Performance
| Watts | 52W |
| Color Temp | 5000K (Cool) |
| Lumens | 7,468 lm |
| Efficacy | 129.2 |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 57.8W |
Dimensions
Weight: 17.6 lbs
Technical Specifications
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight Wall Mount Only
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PVF6BN4D
DLC Product Code: PVF6BN4D
LED Characteristics
LEDs
Two (2) multi-chip, high-output, long-life LEDs
Electrical
Driver
Constant Current, Class 2, 480V, 50-60Hz, 480V: 0.34A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
13.74% at 480V
Power Factor
92.1% at 480V
Surge Protection
6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-52 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
